Stainless Steel Fan Guard

We supply Stainless Steel Fan Guards for equipment-cooling fans. The materials can be stainless steel 304 type and ss 316 type. Sizes and designs are as per drawing below, also alternate substitutes or similar parts.

Type One: Stainless Steel 304 Fan Guard for 2.36" (60 mm) Fan:
Material Description: GUARD,2.36, SQ FAN SS.

Stainless Steel Finger Guard for Fans: 120MM METAL

MOQ to quote: 1000/3000/5000

For Fan Size

2.36" (60 mm)

Additional Specifications

Fan Guards

Type 304 Stainless Steel

Square

These fan guards are for use with equipment-cooling fans.

Type Two: Stainless Steel 316 Fan Guards
Material: Stainless Steel 316
We can provide a sample quotation for inspection before big orders.

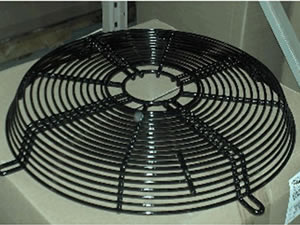

16 x Stainless Steel Fan Guard 16" like the below picture:

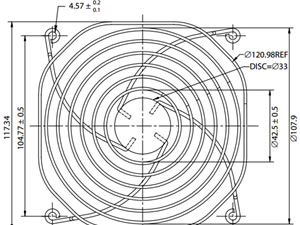

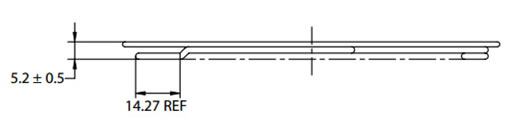

Nickel Chrome Plated Fan Guard Grille Drawings of SS Fan Guards


Stainless Steel 316 Wire Form Fan Guard(120mm) Specifications:

Dim range (mm)

Tolerance +/-(mm)

0-5

0.1

5-16

0.15

16-64

0.2

64-250

0.4

250-1000

0.5

1000-1500

1.0

NOTES:
1. MATERIAL: C1008 BRIGHT BASIC WIRE
2. FINISH: BRIGHT NICKEL CHROME PLATING
3. 0.35 ± 0.05 DEPTH OF SERRATIONS ON WIRE
4. RING: ∅1.6 ± 0.1mm
RIB: ∅2.0 ± 0.1mm
DISC: = ∅33 T=0.8mm
5. GENERAL TOLERANCE UNLESS NOTED IS ± 0.7mm
